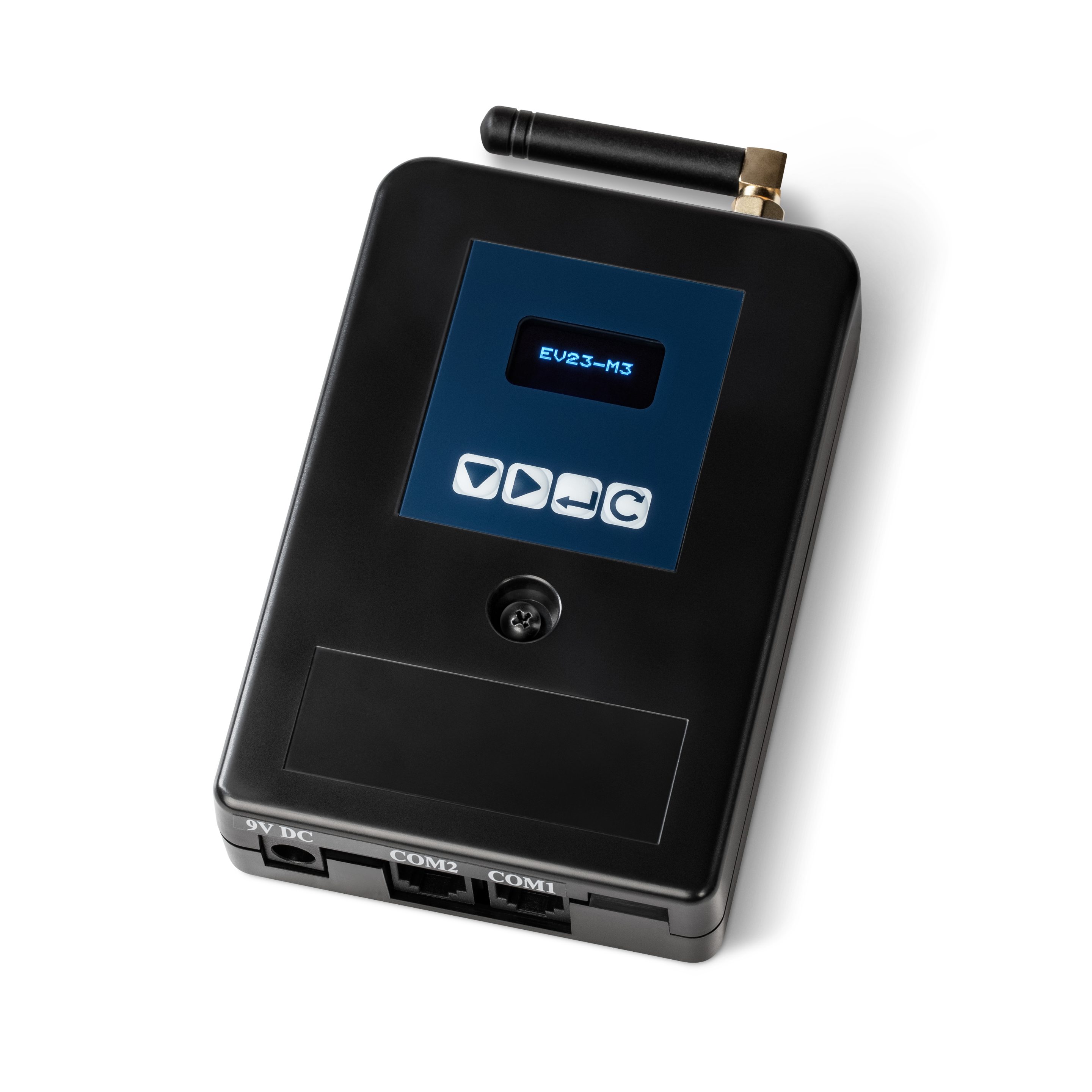

The capabilities of the ELICOM EV23-M3 are tailored to meet the financial reporting requirements of goods saled by self-service vending machines.
The EV23-M3 supports Executive, MDB and Parallel communication interfaces and features a service control display for visualization of operating modes.
The presence of a graphical OLED display and function buttons allow basic control and diagnostic functions to be available in the autonomous.
Through a BLE interface and under the control of a mobile device application program, all necessary functions for programming and reporting of the device are implemented.
The device is available with dedicated connection cables for the different types of communication interfaces
| Technical Specifications: | |
| Fiscal memory: | Non-volatile, with 3600 report volume |
| Display: | Graphic OLED 128*64 |
| Keyboard: | 4 service keys |
| Clock: | Calendar Runs for 90 days after power off |
| Interface: |
Bluetooth (BLE 4.0) RS-232 1pc Vending interface: – MDB – Executive – Parallel |
| Payments: |
Cash Card |
| Reports: | Z Report, X Report, Vending Report |
| GPRS modem: | Built-in with external antenna and SIM card |
| Internal Electronic Journal: | Micro SD card |
| Cryptographic module: | Built-in |
| Power supply: |
Power DC adapter 9V 2A From the self-service unit 24V-34V VAC |
| Dimensions: | W x L x H 80×28х110 mm |
